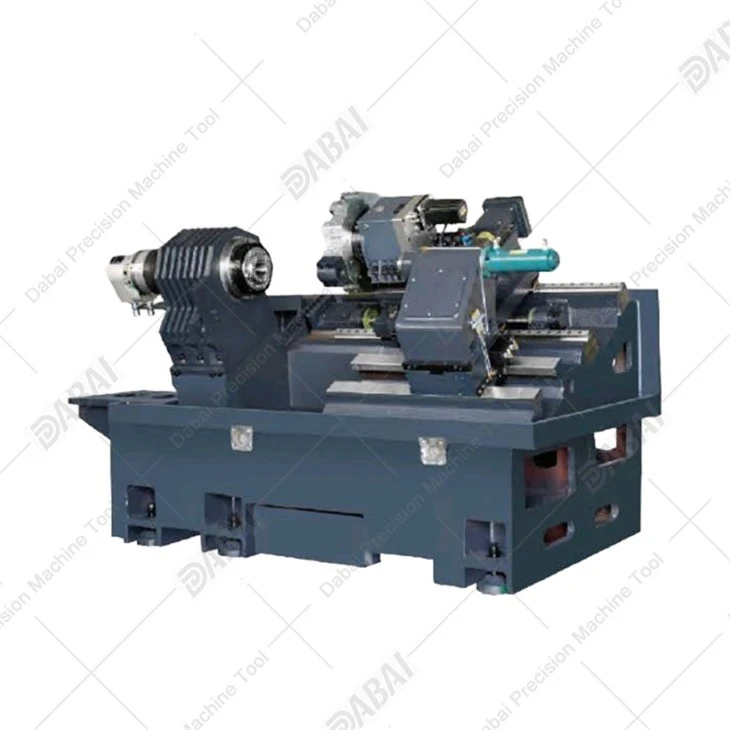

The CNC Turn Mill Center is a high-rigidity multi-tasking machining system designed for precision turning, milling, drilling, and tapping in a single setup.

Key Production Benefits

●One setup machining eliminates repositioning error → improves yield stability
●Integrated turning & milling reduces machine count → lowers capital investment
●High rigidity 45° bed reduces vibration → improves surface consistency
●0.3 sec tool change reduces idle time → increases daily output capacity
●Continuous 24/7 production design → suitable for mass manufacturing environments

Product-Details-

Technical Specifications

Machine Structure

Item	Specification
Bed type	45° inclined casting structure

Spindle System

Item	Specification
Spindle nose	A2-6
Spindle bore	61 mm
Chuck size	8 inch / Φ210 mm
Drawbar system	Hydraulic
Max speed	4500 rpm
Motor power	15 / 18.5 kW
Max torque	71.6 / 95.5 Nm

Machining Capacity

Item	Specification
Max swing over bed	460 mm
Max machining length	450 mm
Max turning diameter	300 mm
Bar capacity	Φ52 mm

Axis System

Item	Specification
X-axis travel	210 mm
Z-axis travel	450 mm
Rapid speed (X/Z)	20 m/min
Ball screw	Φ28 / 28 mm
Linear guide	30 / 30 mm

Precision Performance

Item	Specification
Positioning accuracy	0.005 mm
Repeat accuracy	0.005 mm
Roundness	0.003 mm
Cylindricity	0.006 mm

Turret System

Item	Specification
Tool positions	8 / 12 tools
Drive type	Servo motor
Tool change time	0.3 sec
Tool size	25 / 20 mm
Drilling capacity	40 / 32 mm

Cooling & Power

Item	Specification
Coolant tank	120 L
Cutting pressure	2.3 bar

Machine Size

Item	Specification
Size (L×W×H)	2100 × 1650 × 1780 mm
Weight	3000 kg
Power	22 kVA
Voltage	380V ±10%, 3-phase, 50/60Hz

Engineering Quality & Verification

Each DC200 CNC Turn Mill Center undergoes strict industrial-grade verification before shipment:
●72-hour continuous dry-run + load simulation test
●Spindle thermal stability inspection under full load conditions
●Ballbar accuracy testing for dynamic machining verification
●Alignment inspection of critical axes before final assembly
●Full pre-shipment documentation and test report provided

Application Industries

The DC200 CNC Turn Mill Center is widely used in:
●Automotive manufacturing: shafts, housings, transmission parts
●Aerospace engineering: structural brackets, precision components
●Medical devices: surgical tools, implant-grade metal parts
●Hydraulic systems: pumps, valves, connectors
●OEM precision machining workshops

Custom Engineering Options

We provide flexible configuration for different production markets:
●CNC control system: Fanuc / Siemens / Mitsubishi (optional)
●Spindle power and torque customization
●Tool turret expansion (8 → 12 positions)
●Bar feeder & automation integration
●Live tooling for complex contour machining

For Distributors & Wholesale Partners

We actively support global B2B partners and machine distributors:
●OEM branding and private labeling available
●Regional distributor cooperation supported
●Tiered pricing based on order volume
●Technical training and sales documentation provided
●Flexible payment structure for long-term partners (T/T, L/C negotiable)
●Engineering support for customer pre-sales configuration

Packaging & Global Delivery

●Anti-rust treatment before shipment
●Heavy-duty reinforced wooden export crate
●Shock-proof internal locking structure
●Sea freight optimized packaging standard
●Optional door-to-door logistics service

Warranty & After-Sales Support

●12-month warranty for manufacturing defects
●24/7 technical support (remote assistance)
●Optional overseas installation & training service
●Preventive maintenance documentation included
●Spare parts supply support for long-term operation

CE-Certificate

Workshop

FAQ

Q: What is the delivery time of the DC200 CNC Turn Mill Center?

A: Standard lead time is 4–6 weeks depending on configuration and customization requirements.

Q: What payment terms do you support?

A: Standard terms are 30% deposit + 70% before shipment; L/C is available for qualified wholesale orders.

Q: Can I order just one machine?

A: Yes, MOQ is 1 set for both end users and distributors.

Q: Do you support OEM or private labeling?

A: Yes, OEM branding and custom machine labeling are available for distributors.

Q: What trade terms do you support?

A: EXW, FOB, CIF terms are available depending on destination and logistics requirements.

Q: Do you provide certification for import clearance?

A: Yes, CE and ISO documentation can be provided for customs and compliance.

Q: How is the machine protected during shipping?

A: The machine is packed in reinforced export-grade wooden crates with anti-rust and shock protection systems.

Q: What warranty do you provide?

A: 12 months warranty covering manufacturing defects and non-human damage components.

Q: Do you provide installation and operator training?

A: Yes, remote training is standard; on-site support can be arranged upon request.

Q: Can the machine be customized for different markets?

A: Yes, we customize spindle systems, CNC controllers, and automation modules based on regional production needs.
